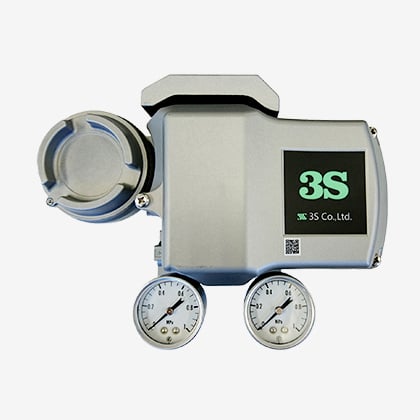

E/P positioner：CE
- Flameproof
Features
◆Compact and lightweight◆The cam can be detachable with levers on.
◆Split range available.
◆High endurance for vibration.
◆Easy zero-span adjustment.
◆Easy maintenance.
◆4 to 20 mA feedback signal function available (optional).
Specs
| Specs | standard | option |
| Input Signal | 4 to 20 mADC ／ 250Ω | |
| Supply air pressure | 0.14 to 0.7 MPa | |
| Stroke | 10 to 100 mm （option: 3 to 10 mm） ／ 60 to 90° | |
| Air connection | Rc1/4 (Gauge Rc1/8) |
NPT1/4 (Gauge NPT1/8) |
| Power Connection | G1/2 | NPT1/2 |
| Pressure gauge | 0 to 0.2 MPa 0 to 0.4 MPa 0 to 1.0 MPa |
kPa / psi * / bar |
| Enclosure protection level | IP65 (IEC529-1989) | |
| Construction | Non-explosion proof Flameproof: Ex d llB T6 |
|
| Cam | Linear | Non-linear |
| Ambient temperature | Standard: -20 to 83 ℃ (Flameproof: -20 to 60 ℃) Low Temp. -50 to 60 ℃ High Temp. 0 to 100 ℃ |
|
| Material | Body: Aluminum Diecasting (Special Anodize) Standard cover: Aluminum Diecasting (Special Anodize) |
|
| Weight | Single acting: Approx. 2.2 Kgs Double acting: Approx. 2.3 Kgs |
———————————–
Specification
| Specs | Single acting | Double acting |
| Linearity | ±1.5 % | |
| Hysteresis | 1.0 % | |
| Repeatability | 0.5 % | |
| Sensitivity | 0.5 % | |
| range of supply air | 0.3 % ／0.01 MPa | |
| resistance against vibration | 1 % ／ 1 G | |
| Air consumption (Nl/min) |
5 / 0.14 MPa at Output pressure 50 % |
11/0.4MPa at Output pressure 75 % |
| Max Cv. (Nl/min) |
180 to 200 Nl / min. ／ 0.4 MPa | |
Attention for usage of pneumatic instruments
* Clean and dry air (dew point -30 or below) is required.
* Air filter 5μm or smaller is required.
All specifications are subject to change without prior notice.
All figures are effected by the valve/actuators.
* No domestic sales in japan due to Non-SI unit.
