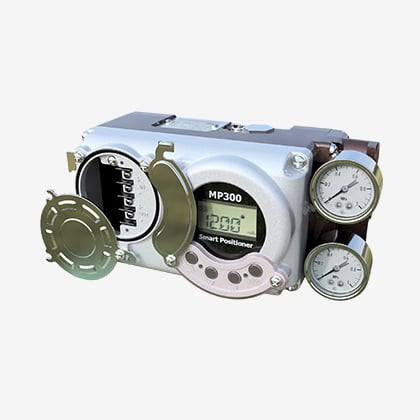

Smart positioner：MP300

  • Intrinsically Safe

Features

■Smart positioner in Compact Structure

Same performance and features as MP100 smart positioner, in compact and light-weight construction writing opening main cabity

■LCDand Push-Buttons Equipped

Configulation both available with/without handy communicator

■HART / Analog Feedback option

HART Communication Protocol and/or 4-20 mA analog feedback signal function

Model

Line Definition 1 2 3a 3b 3c 4 5 6
Series Smart positioner MP3
Housing Standard (Non-explosion proof)   0
Intrinsically Safe
Ex ia IIC T6…T5 Ga		   4
Connection & acting Single acting Rc 1/4 (gauge: Rc 1/8)     1
Double acting Rc 1/4 (gauge: Rc 1/8)     2
Single acting 1/4 NPT (gauge: 1/8 NPT)     3
Double acting 1/4 NPT (gauge: 1/8 NPT)     4
Electric connection G1/2       1
1/2 NPT       2
M20 × 1.5       3
Option N/A         1
Analog Feedback & HART communication         4
Ambient temp. Standard: -20～80℃
Ex ia IIC T6…T5 Ga:
-40 °C to +60 °C (T6)
-40 °C to +80 °C (T5)		           S
Actuator Linear motion             L
Rotary motion             R
Outlet press. gauge 0.2 MPa               M2
0.4 MPa               M4
1.0 MPa               M0
200 kPa               K2
400 kPa               K4
100 kPa               K0
30 psi *               P2
60 psi *               P4
150 psi *               P0
2 bar               B2
4 bar               B4
10 bar               B0

* No domestic sales in japan due to Non-SI unit.

Specification

Item Specification
Input signal / Input resistance 4 to 20 mA (minimum range: 4 mA) / minimum drive current: 3.8 mA *1
（Voltage across terminals 10.5 V DC Typ）
Supply air pressure 0.14 to 0.70 MPa
Stroke / operation angle Linear motion: 10 to 100 mm　(Rotation angle of feedback lever 30 to 100°)
Rotary Motion: Rotation angle of feedback lever 30 to 100°
Air connection Standard: Rc 1/4 （Pressure gauge Rc 1/8）
Option: 1/4 NPT （Pressure gauge 1/8 NPT）
Electric connection Standard: G 1/2　Option1: 1/2 NPT　Option2: M20×1.5
Protection of enclosure IP66 (IEC 60529:1989 / AMD2:2013)
Type of Protection Non-explosion proof
Operating temperature range －20 to 80℃
Flow characteristics Linear / near Equal-percentage, Quick open, Custom setting(17 setting points)
Manual action A/M swtch function (only for Single Acting)
Weight Approx. 3.8 kg
Hausing Material Aluminum Diecasting

Option

Function Items Specification
Analog feedback signal Output signal range 4 ～ 20 mA (reverse output is available)
Input voltage 12 to 36 V DC
Accuracy ±1.0% F.S to the position
Communication function HART communication HART7

※While input signal below is under 3.8 mA, the feedback signal falls stand-by value.
